Robotic Welding by Jamieson Welding

We have been involved in robotic welding for over a decade now. Over this period we have developed and refined our manufacturing processes, including making our own jigs to precisely suit the work in hand. This allows us to handle smaller batches, streamline our workflow and reduce lead-times

Transition bases: Internal and external triple pass robotic welding, 50mm S355J2+N

15mm formed plate to merchant bar

Positioner rotational welds, manual filet welds

Biomass piping spools: Robotic internal and external rotational welds

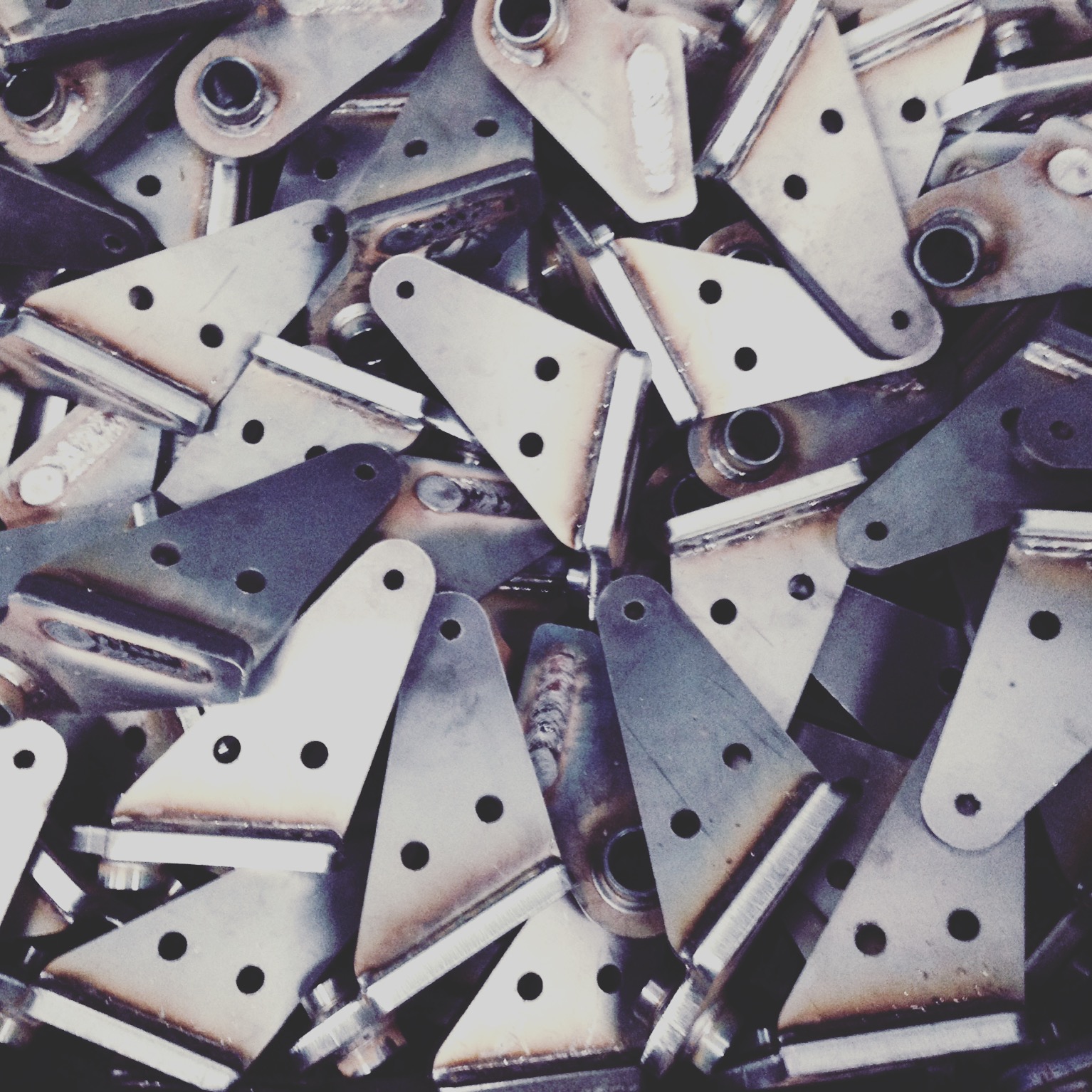

Cable brackets

Cable Brackets: Robotic 2 stage welds

Track extensions

Track extensions: Robotic weld & powder coat

Spools

Robotic internal & external rotational welds

Test welding

Test welding

Pedestals

Pedestals: Robotic internal, natural V filet welds. 20mm to 40mm S355J2+N

Weld sample

Weld test sample
BS EN ISO 15614-1 & ASME Section IX

Filet Weld

Robotic continuous weld, 12mm plate

Robot at work

Robot at work

Hardox 600 welded to steel

Waterjet cut, rotationally welded to pipe

Robotic Welding

“Ultra-high-precision weld process

boasting 100% reproducibility and the best process-control you’ll find anywhere in the world”

- Fronius, Austria

Benefits of Jamieson Welding

robotic manufacturing process

Excellent quality, production & consistency control
Ultra-high precision weld process with very stable arc conditions
Extremely low thermal input & distortion
Virtually spatter free-welding
Vast welding capacity available
In-house jig design & fixtures for streamline manufacturing
Accessibility to small and large batch runs, SME to large OEM customer base
Faster lead-times
Addresses skills shortage for more stable productivity & scalability

Fabrications by Jamieson Welding

We have proven our expertise in welding and fabrication over the last forty years. Consistently delivering metal fabrication work and building on that experience.

Tower sections made by; DWJ cutting, tube cutting, bending, robotic rotationals, semi-automatic positioning, manual MIG

Casings pre-fabricated for robot welding

Wind turbine accumulator brackets

Agricultural equipment linkage arm

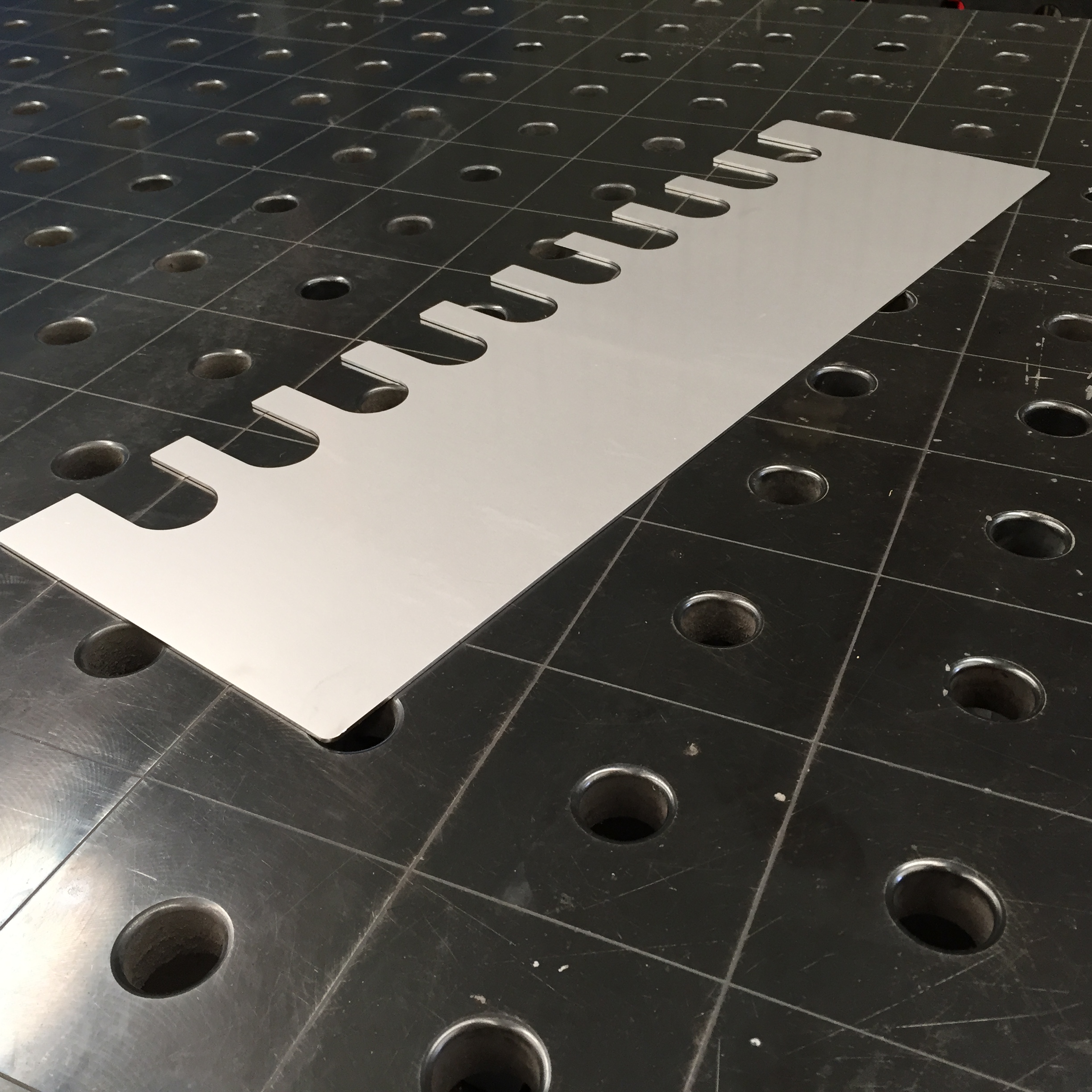

stainless shim sitting on one of our jig & fixture benches

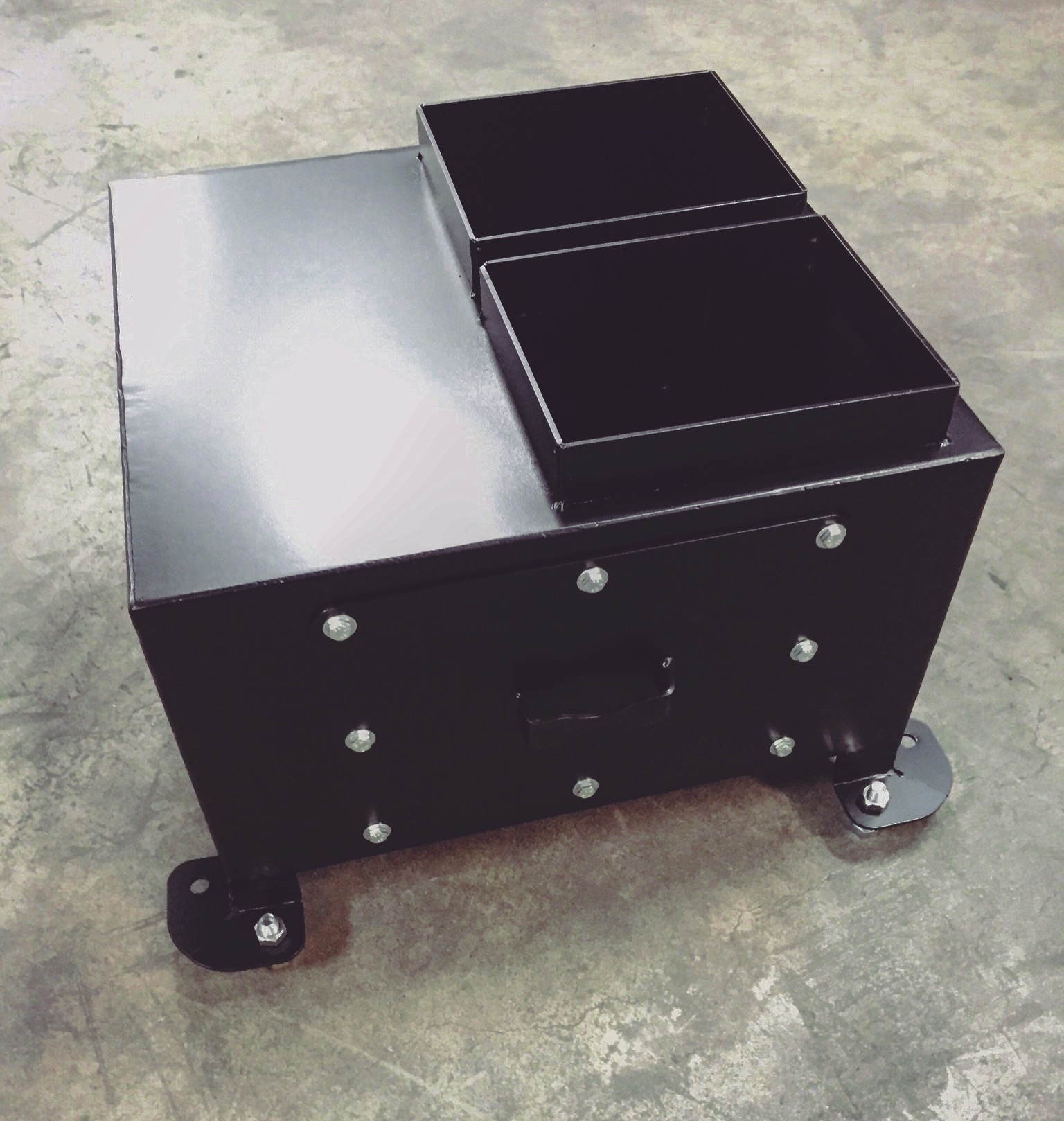

Box for biomass installation

Shell pipe clamp

Trailer and aluminium toolboxes

Trawler towbar

Manual plasma cutting

Low loss header. Robotically welded sub-assembly spools, manually welded to tube

Low loss header, shotblasted and powder painted

Shellfish shaker tables with replaceable Hardox screens

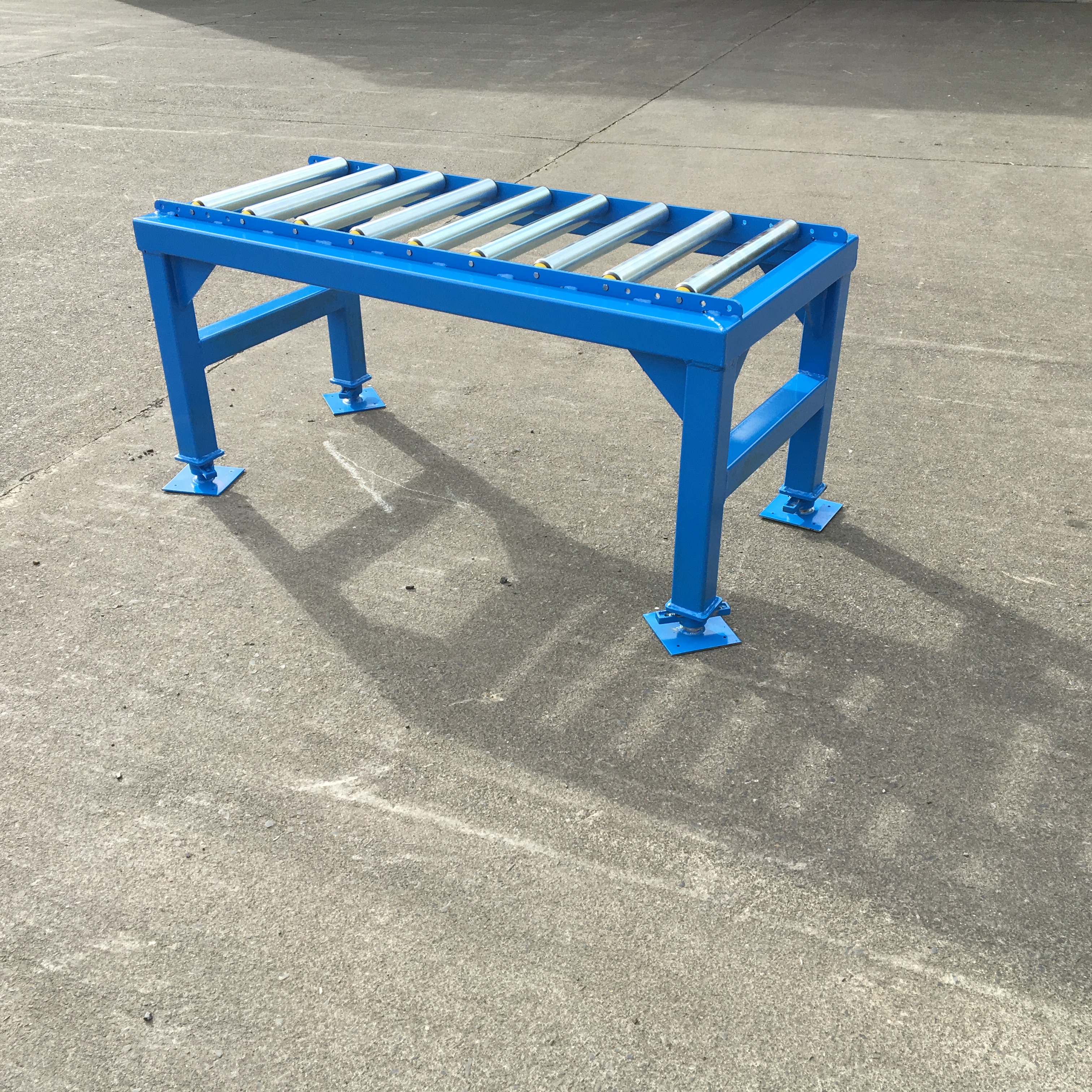

Manual conveyor roller

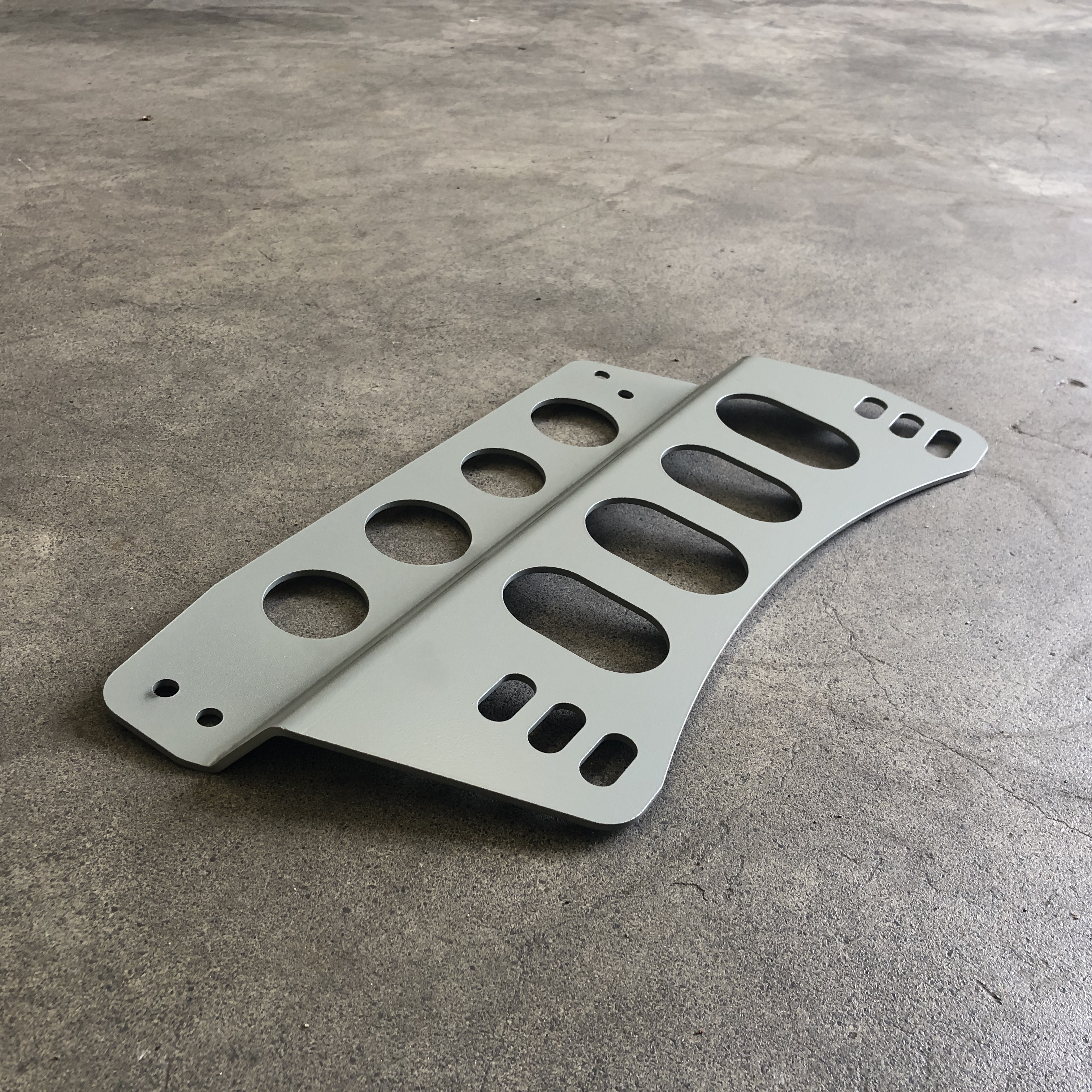

Press brake form with tight tolerances. Gauge panel for oil industry

Custom sized stainless steel floor grating panels. Laser cut & TIG weld.

Renewable wind farm, replacement impellers for service team.

Custom specialised tooling for windfarms

Hydraulic oil tank for forrestry

Pre-fabricated, security lock covers for shipping containers

Our fabrication facilities

Automatic bundle clamp & mitre saws
Press braking
Guillotine
Profiling: laser, waterjet & flame
Fixture benches
Semi-automatic positioning
MIG/TIG/MMA
